Access with UHF Credentials
Anti-Torn Sticker UHF Card Heavy Duty UHF Tag
TimeTec UHF2-10F
Long Range RFID Barrier Gate System
TimeTec UHF Long Range Barrier Gate System is an optional solution that can be integrated with i-Neighbour Smart Community System. The Barrier Gate System consists of a few major components, i.e. the long range UHF reader, Smart Access Controller and CCTV integration along with the Software.

The long range UHF reader can support a maximum distance of 10 meters. By default, the long range UHF reader and Smart Access Controller work to capture and verify the card data from the driver or vehicle. As such, the Smart Access Controller has its own software to store and manage the residents' card/tag data and takes full control of the barrier gates. On the other hand, the CCTV is used to monitor and record the inflow or outflow of the registered residents and visitors' vehicle.

The Smart Access Controller stores residents' card data/verification algorithm and can be integrated into the long range UHF reader to override the current system. In other words, the Smart Access Controller uses the long range UHF reader to collect/validate the card data and subsequently controls the access of the barrier gate.

The Management has the option of issuing long range UHF cards or non-transferable long range UHF tear-torn stickers that can be placed on the vehicles to be used as credentials for gaining uninterruptible access. Correspondingly, the Management can also manage the individual resident's card data within i-Neighbour system and sync all data into the Smart Access Controller and its software at the local computer. Basically speaking, the residents' entries/exits records stored inside the Smart Access Controller can be downloaded into its software in the local computer, and synced to i-Neighbour's system from time to time.
Advantages
Readability of UHF signal from a long range thus maintaining a smoother access at the guardhouse.
All entry and exit images can be recorded for visual evidence if installed together with surveillance cameras.
No more winding down of window to flash card which will cause wetness during rainy days or exposure to robbery threats for the drivers.
Affordable price to maintain the durable long range UHF card.
Fast and capable of reducing traffic congestion during peak hour.
UHF tear torn sticker's access credential is not transferable for better safety measure.
Current long-range UHF barrier system can be maintained and integrated with i-Neighbour smart community system if the management still wanted to keep the system.
Your vehicle would be safe at home when you are away as residents are allowed to set their abroad duration through i-Neighbour account in order to temporary disable the card access.
How Its Mechanism Works:
Long Range UHF Reader reads the registered microchip built-in the tear-torn sticker/UHF card inside the vehicle from afar and the barrier gate is then triggered to open ahead of time. As such, vehicles can enter without the need to fully stop for flashing of card at the reader. This allows for smoother traffic flow and greatly reduces traffic jam during peak hours.

Brochure:
Installation Guide:
1 Long Range Reader
UHF Long Range Reader permeates UV protection film to read the UHF card inside the vehicle (within 1.8 to 10 meter range) or UHF tear-torn sticker outside the vehicle and send the card number to the controller to instruct the lifting of barrier gate.
Anti-Torn Sticker

Brochure:
UHF Card

Brochure:
Heavy Duty UHF Tag

Brochure:
Comparison:

2 Anti-Torn Sticker/UHF Card/Heavy Duty UHF Tag
UHF Card/Anti-Torn Sticker/Heavy Duty UHF Tag is issued to valid residents for their registered vehicles to be read by UHF reader every time they access the barrier gate.
Brochure:
• English
• العربية
• Deutsch
• Indonesia
• Bahasa Melayu
• Português
• Tiếng Việ
Installation Guide:
• English
• Deutsch


3 Access Controller
Ingressus I/II/IV Controller with web software integrated with i-Neighbour cloud solution to verify card number, expiry date, access permission and access history.
Upon approved of credential, Ingressus will open barrier gate and trigger DVR to capture picture.

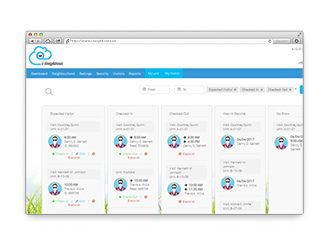

4 TimeTec Access Admin Software
The cloud system record event log of each entry and exit of employees' & visitors' vehicles and the management of registered vehicles.

5 Fast Speed Barrier Gate
Barrier gate will open in just 1.8 sec to reduce waiting time and allow faster traffic flow.

6 Loop detector
Loop detector will trigger barrier gate to close automatically after the vehicle has completely passed through.
Brochure:


7 Varifocal IR Camera
IR Camera will be adjusted to obtain a complete view of the vehicle type and its license plate.

8 DVR Video Server
DVR will send captured picture to the software.
Brochure:
Installation Guide:
TimeTec UHF2-10F
Long Range Wiegand Smart Barrier System
MODEL UHF2-10F
DIMENSION (L X W X H), mm 445 x 70 x 445
Weighing (kg) 2.76
READING DISTANCE Up to 12 meters (adjustable)
COMMUNICATION INTERFACE Wiegand 26 (Default)
Wiegand 34, USB
FREQUENCY 902Mhz – 926Mhz
865MHz – 868MHz
SHELL MATERIAL Antenna Panel: ABS Engineering Plastics
Back Cover: Aluminum Shell
WORKING VOLTAGE 9~12V DC
WORKING CURRENT 150mA (Always Read)
WORKING TEMPERATURE -20 °C - 60 °C
INTERFACE PROTOCOL EPC global UHF Class 1Gen 2/ISO 18000-6c
MULTIPLE TAGS IDENTIFICATION < 100
WORKING MODE Always read (Default) / Trigger read
I/O INTERFACE Supports external trigger
MAXIMUM POWER CONSUMPTION < 3W (RF output 26dBm, multiple tags)
< 2W (RF output 26dBm, Sigle tags)
